Friedrich III. Remontoir | Caliber VI-I

Name: Friedrich III. Remontoir | Caliber VI-I
Brand: Lang & Heyne
Price: 56520.00 USD
Availability: InStock

Friedrich III. Remontoir | Caliber VI-I

$56,520.00 USD

Sale Sold out

Shipping calculated at checkout.

The Friedrich III Remontoir expands one of the brand’s most versatile movements to include one of the most sophisticated complications in fine watchmaking: the seconds remontoir. Based on the proven architecture of Caliber VI, LH Caliber VI-I ensures that the escapement receives the same force at every moment, regardless of the mainspring’s state of winding. To achieve this, a fine remontoir balance spring is rewound and discharged once per second. This is visible in the characteristic jump of the second hand. The numerals, hands, and off-center seconds sub-dial continue to form the finely balanced, aesthetically and functionally harmonious unit for which the Friedrich III is renowned. On the back, the trigonal wheel bridge offers a view of the interplay between the power reserve, the trigger mechanism, and the escapement. Saxon craftsmanship made visible.

Diameter 39.2 mm
Height 10.7 mm

Hour and minute display,
off-center jumping seconds

LH Caliber VI-I
with manual winding

24/42 hours (remontoir / power reserve)

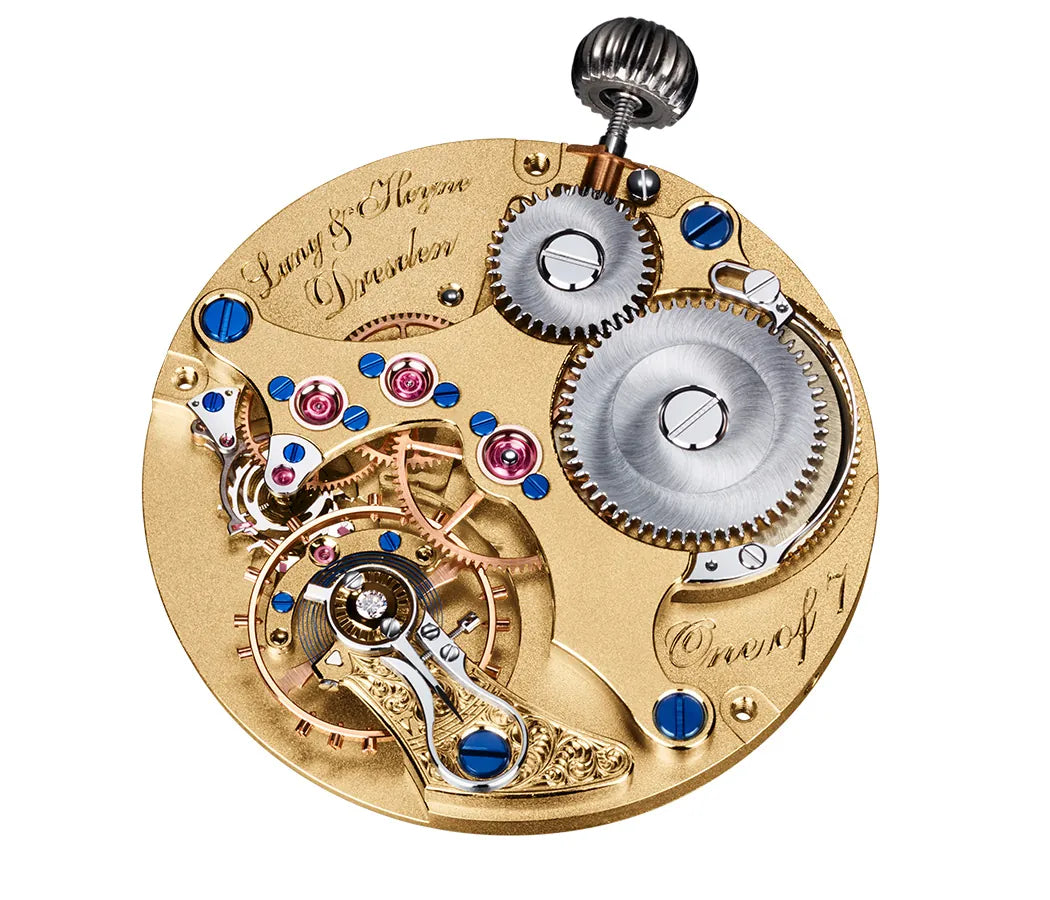

Caliber VI-I

Caliber VI-I expands the architecture of Caliber VI with a seconds remontoir. A small storage spring is tensioned at fixed intervals and transfers energy more evenly to the escapement. This creates the jumping eccentric seconds while stabilizing the delivery of power over the usable remontoir range. The open wheel bridge makes this constant-force mechanism visible.

Dimensions

Diameter 14 ½ lines (33.5 mm)
Height 4.9 mm

Frequency

18,000 vph (2.5 Hz)
24/42 h (Remontoir / follow-on)

Movement parts

24 rubies, 1 diamond

Functions

Hour and minute indication
One-second remontoir (intermediate winding every second)
Dead-beat small seconds
Second hand stop

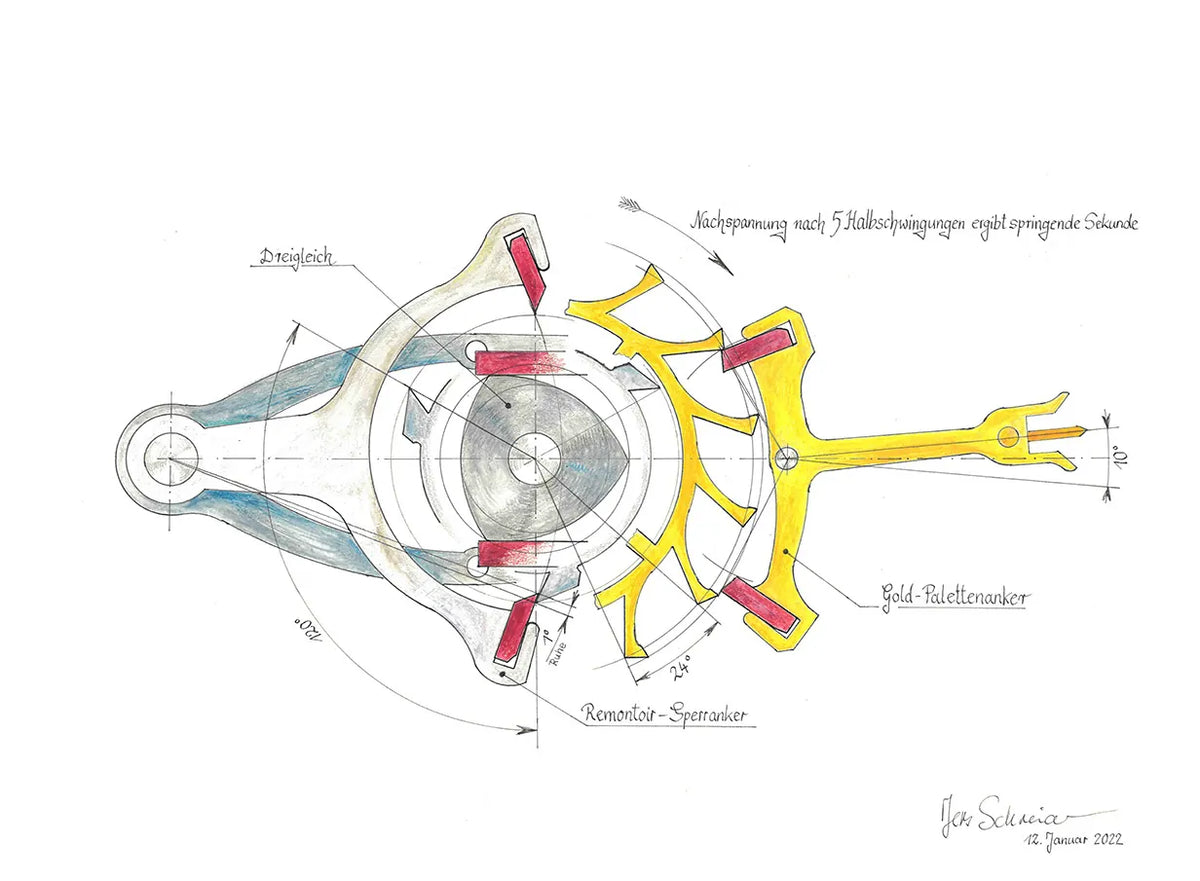

Remontoir With Reuleaux Triangle

A remontoir is an intermediate-force mechanism within the movement. In Caliber VI-I, this mechanism is positioned at the escape wheel and tensions a small storage spring at fixed intervals. At a frequency of 18,000 semi-oscillations per hour, this happens every five semi-oscillations, in other words once per second. The Reuleaux triangle plays a central role here. As a component of constant width, it precisely controls the switching process and enables the stored energy to be transferred evenly to the escapement. In this way, the decreasing force of the mainspring is compensated over the usable remontoir range and the amplitude of the balance is stabilized. This technical process becomes visible on the dial: the eccentric seconds hand jumps in clear one-second steps.

The images show a selection of possible variations. The Givré Medallion comes standard in either red or blue, but customization is available to create a combination that feels uniquely yours.

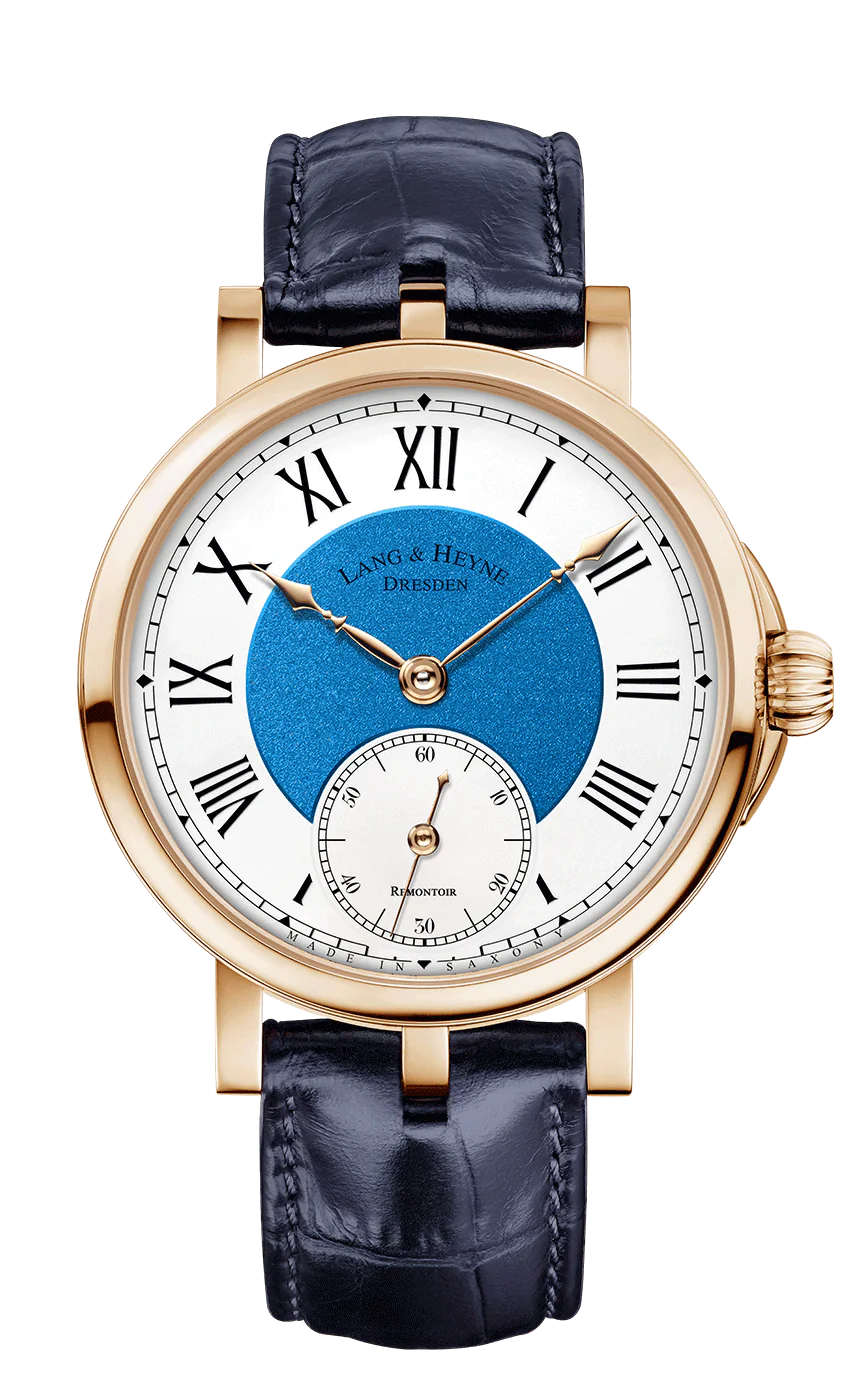

Pictured:

18-carat rose gold
Cathedral-style hands in rose gold
Givré medallion in blue

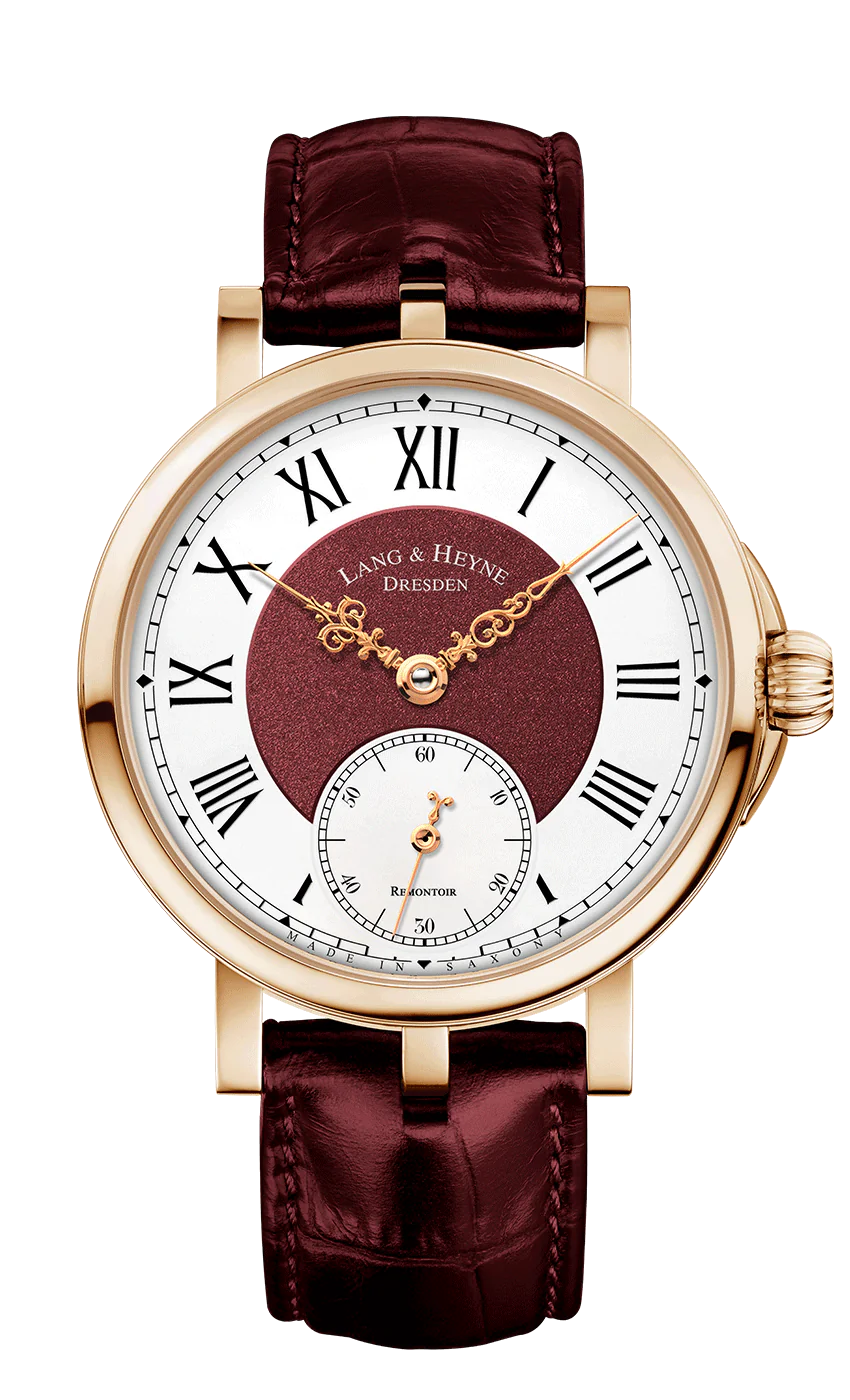

18-carat rose gold
Louis XV hands in rose gold
Givré medallion in red

Price in Euros: €49,900

Pricing Note: This watch is priced in Euros (€). The USD price shown is an estimate and may fluctuate based on the EUR/USD exchange rate at the time of purchase.
